Description

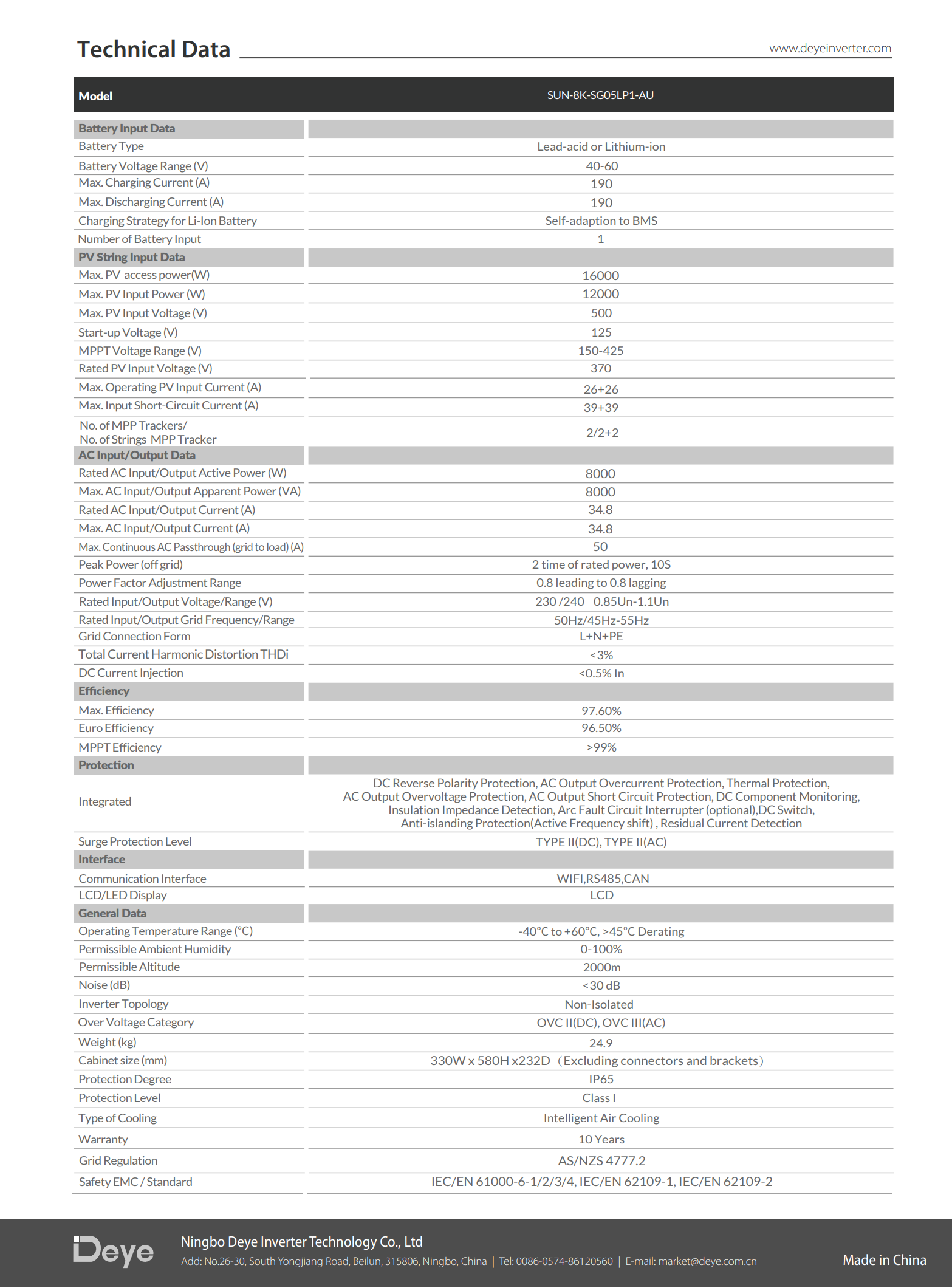

Technical Specifications:

Model: SUN-8K-SG05LP1-AU

PV String Input Data
Max. PV Input Power (W): 12000
Max. PV Input Voltage (V): 500
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Rated PV Input Voltage (V): 370
Max. Operating PV Input Current (A): 26+26
Max. Input Short Circuit Current (A): 39+39
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/2+2

AC Input/Output Data
Rated AC Input/Output Active Power (W): 8000
Max. AC Input/Output Apparent Power (VA): 8000
Rated AC Input/Output Current (A): 34.8
Max. AC Input/Output Current (A): 34.8
Rated Input/Output Voltage/Range (V): 230/240 0.85Un-1.1Un

Interface
Communication Interface: RS485,WiFi,CAN
LCD/LED Display: LCD

General Data
Cabinet Size (WxHxD mm): 330x580x232 (Excluding Connectors and Brackets)
Weight (kg): 24.9
Warranty: 10 Years
