Description

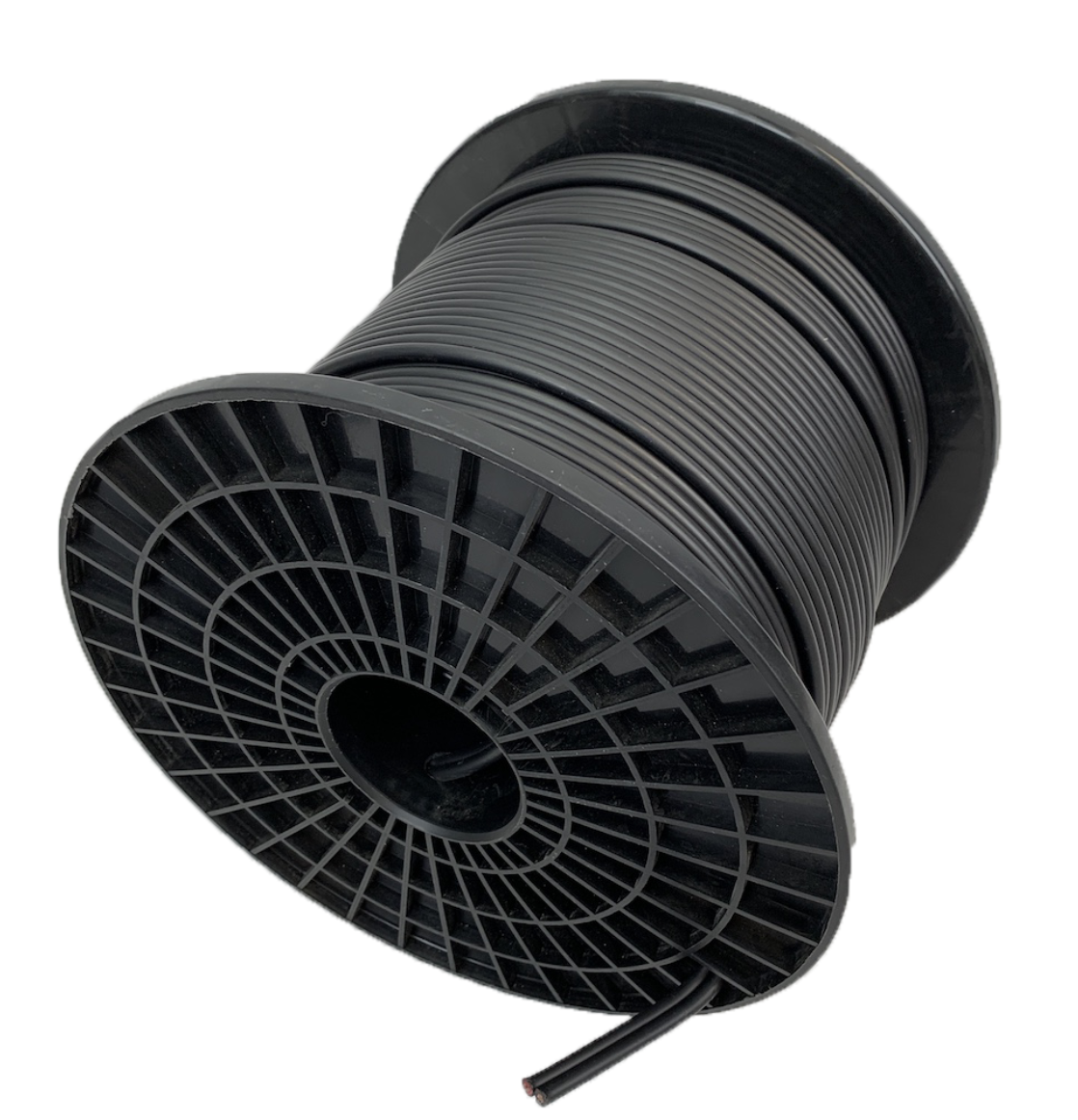

High-quality DC twin solar cable

Compliant with EN50618:2014 which supersedes PV1-F, Australian Standards AS5033:2014, and Clean Energy Council requirements

TÜV approved cable designed for domestic and commercial solar systems

Rated at 1,500V DC

Tinned copper conductor resists corrosion and improves conductor life over non-tinned conductors

• Ideal for use on domestic solar, commercial solar and solar farms
• Twin core cable (positive and negative) with double XLPE insulation
• Colour coded XLPE inner insulation to maintain correct polarity
• Black outer XLPE sheathing provides high-level weather and UV resistance HD605/A1
• Compliant with EN50618 and independently tested by TÜV Rheinland
• Rated to DC 1.5kV and AC Uo/U 1/1kV
• Ambient temperature -40 degrees C to +90 degrees C
• Maximum conductor temperature 120 degrees C
