Description

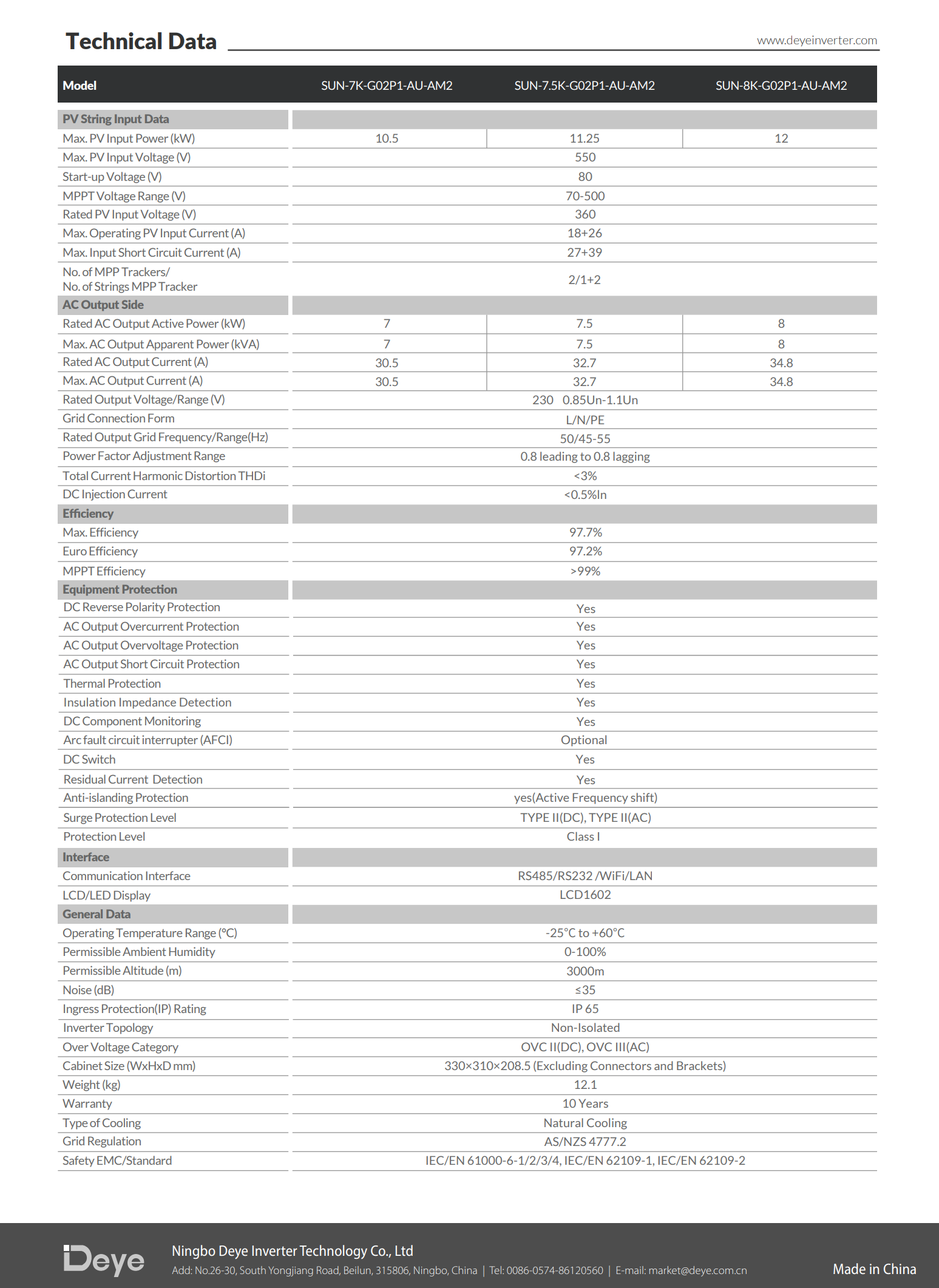

Technical Specifications:

Model: SUN-8K-G02P1-AU-AM2

PV String Input Data
Max. PV Input Power (kW): 12
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 18+26
Max. Input Short Circuit Current (A): 27+39
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/1+2

AC Output Side
Rated AC Output Active Power (kW): 8
Max. AC Output Apparent Power (kVA): 8
Rated AC Output Current (A): 34.8
Max. AC Output Current (A): 34.8
Rated Output Voltage/Range (V): 230 0.85Un-1.1Un

Interface
Communication Interface: RS485/RS232/WiFi/LAN
LCD/LED Display: LCD1602

General Data
Cabinet Size (WxHxD mm): 330x310x208.5 (Excluding Connectors and Brackets)
Weight (kg): 12.1
Warranty: 10 Years
