Description

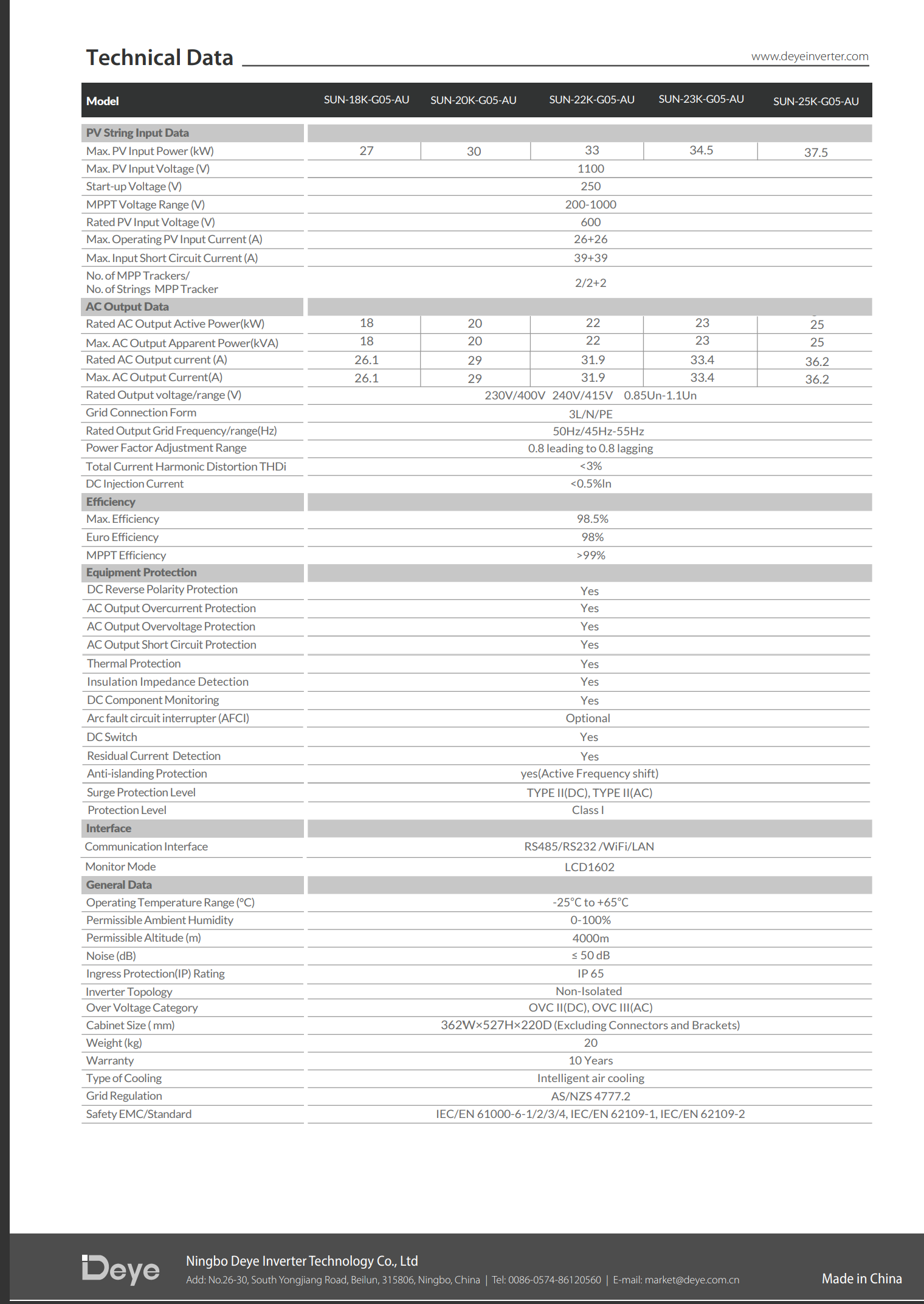

Technical Specifications:

Model: SUN-20K-G05-AU

PV String Input Data
Max. PV Input Power (kW): 30
Max. PV Input Voltage (V): 1100
Start-up Voltage (V): 250
MPPT Voltage Range (V): 200-1000
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 26+26
Max. Input Short Circuit Current (A): 39+39
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/2+2

AC Output Side
Rated AC Output Active Power (kW): 20
Max. AC Output Apparent Power (kVA): 20
Rated AC Output Current (A): 29
Max. AC Output Current (A): 29
Rated Output Voltage/Range (V): 230V/400V  240V/415V 0.85Un-1.1Un

Interface
Communication Interface: RS485/RS232/WiFi/LAN
LCD/LED Display: LCD1602

General Data
Cabinet Size (WxHxD mm): 362x527x220 (Excluding Connectors and Brackets)
Weight (kg): 20
Warranty: 10 Years
