Description

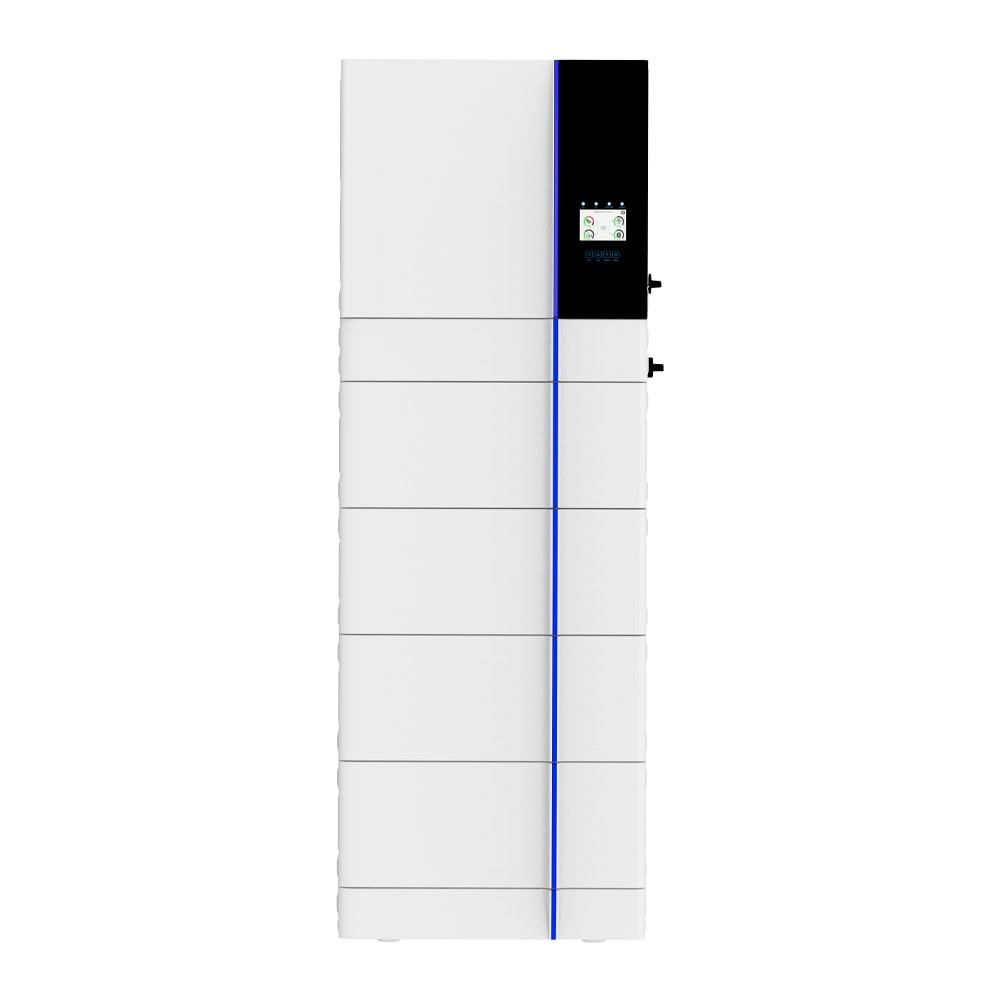

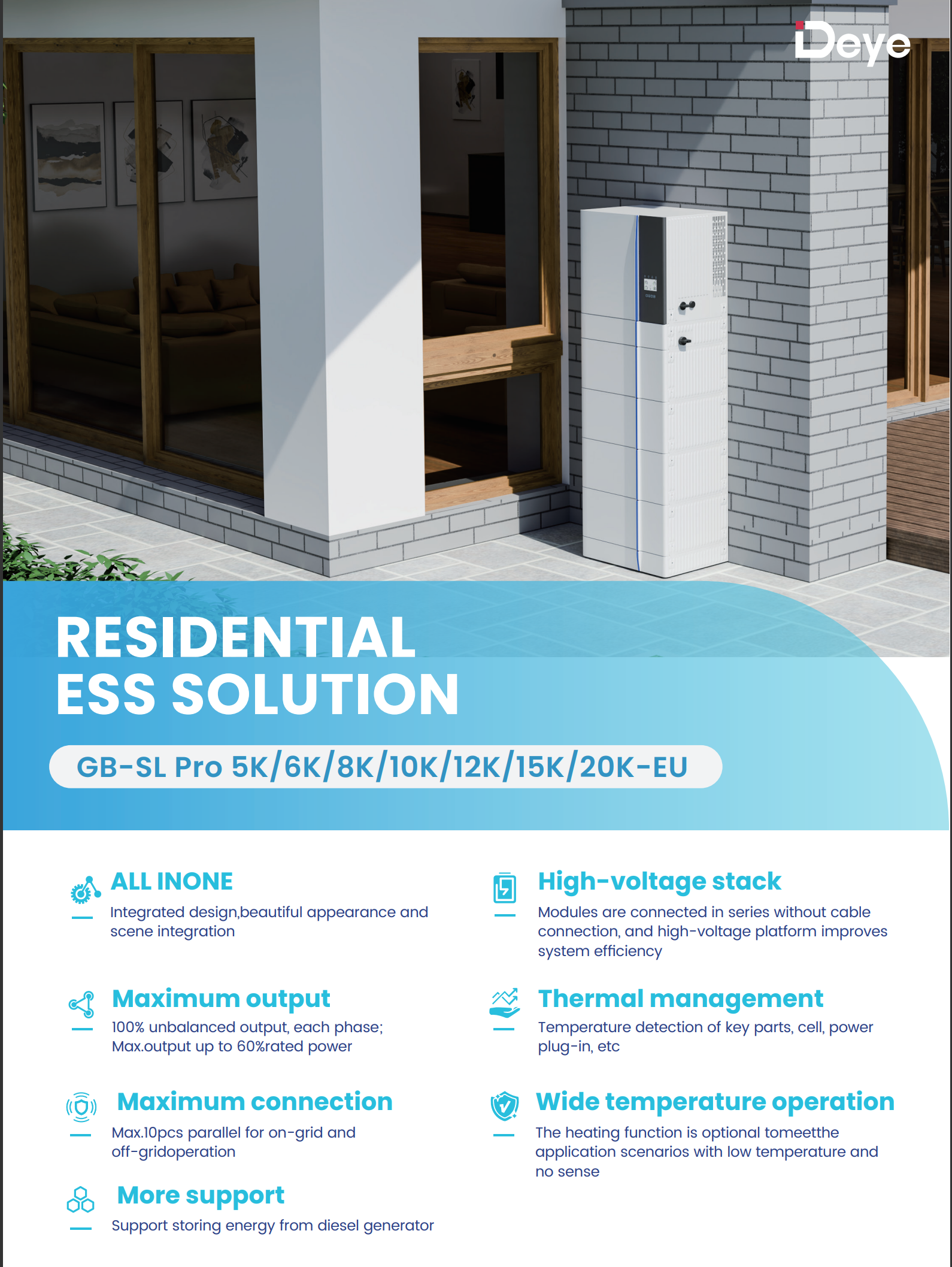

Deye residential energy storage solution is designed to provide energy independence, efficiency, and intelligent control. This integrated system combines a hybrid inverter with a high-performance LFP battery in a sleek, compact unit, empowering homeowners to harness solar power, reduce electricity costs, and ensure backup power during outages.

• All-in-one: Integrated hybrid inverter; and LFP battery
• Smarter: Peak-shaving, smart load; AC coupling
• Scalable: Flat and stackable design; Capacity of 5kWh-30kWh
• Swift Security: Fast switching time of 4ms; Ensuring energy security
• Flexible: No wiring and extra fixing screws; Quick and easy installation
• Convenient: Comfortable and easy control; via App, PC or Touch-Display

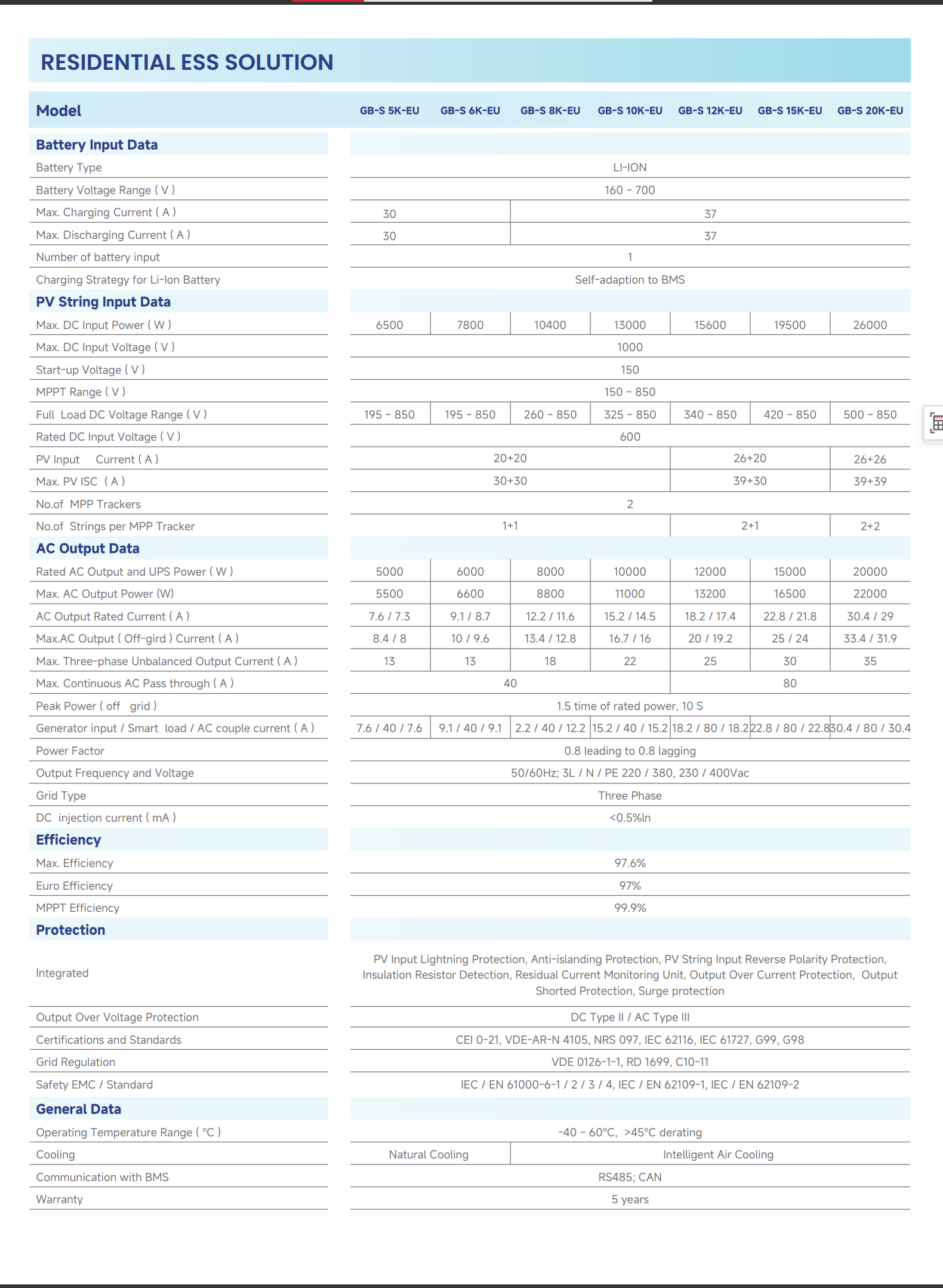

Model: GB-S15K

AC Input/Output Data
Rated AC Input and UPS Power(W): 15000
Max.AC Output Power(W): 16500
Peak Power(off-grid): 1.5  times of rated power,10s
Rated AC Output Current(A): 22.8/21.8
Max.AC Output(off-grid) Current (A): 25/24
Max.Continuous AC Passthrough(A): 80
Max. Three-phase Unbalanced Output Current(A):30
Generator input/Smart Load/AC couple current(A):22.8/80/22.8
Output Frequency and Voltage(V): 50/60Hz;3L/N/PE 220/380, 230/400Vac
Grid Type: Three Phase

PV String Input Data
Max. DC Input Power(W): 19500
Max. DC Input Voltage(V): 1000
Rated DC Input Voltage(V): 600
Start-Up Voltage(V): 150
MPPT Voltage Range(V): 150-850
PV Input Current(A): 26 + 20
Max.Input Short-Circuit Current(A): 39+ 30
No. of MPP Trackers: 2/2+1

Efficiency
Max. Efficiency: 97.6%
MPPT Efficiency: >99%

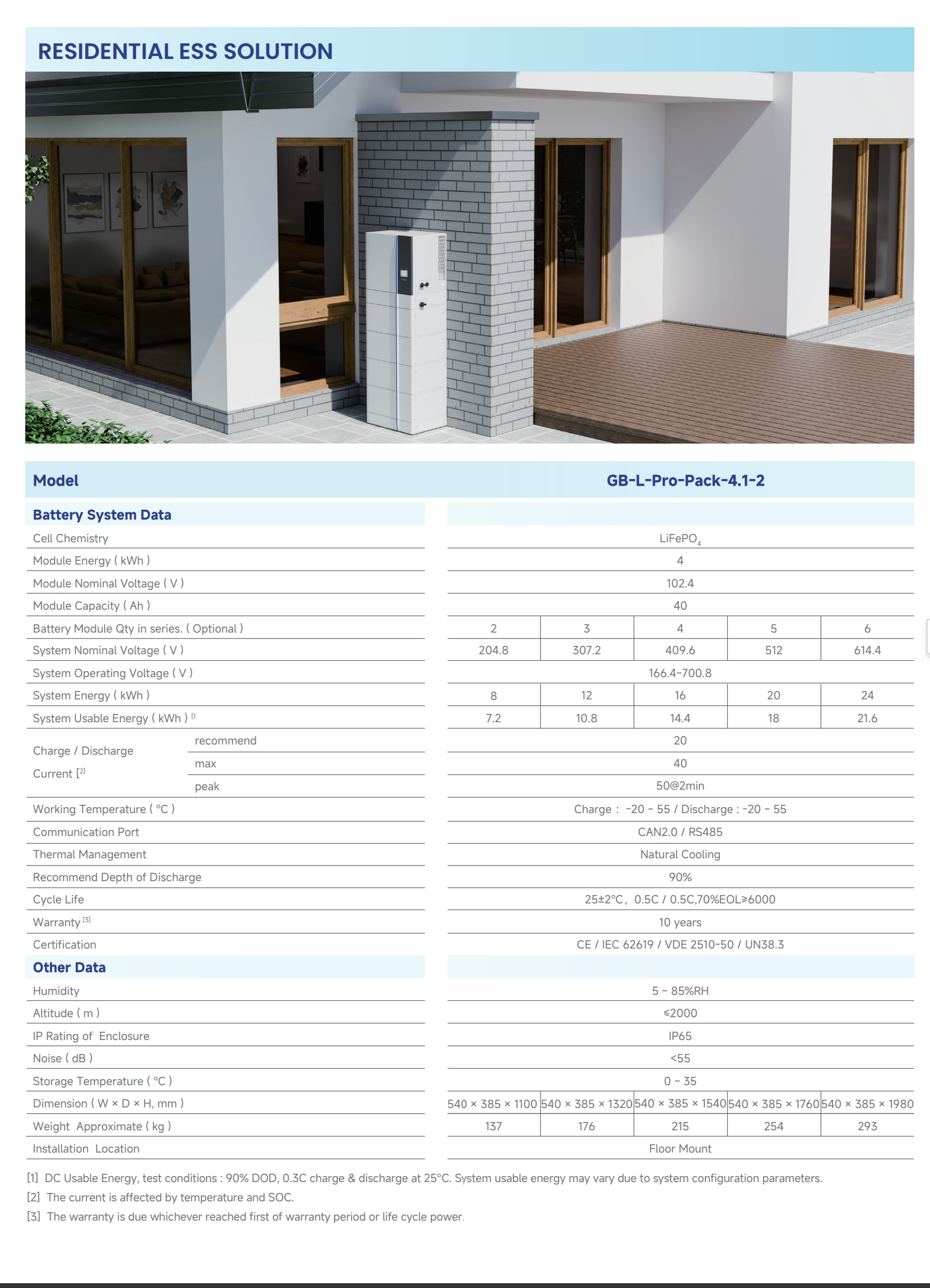

Battery Input Data
Battery Type: LI-ION
Battery Voltage Range(V): 160-700
Max.Charging Current(A): 37
Max.Discharging Current(A) : 37

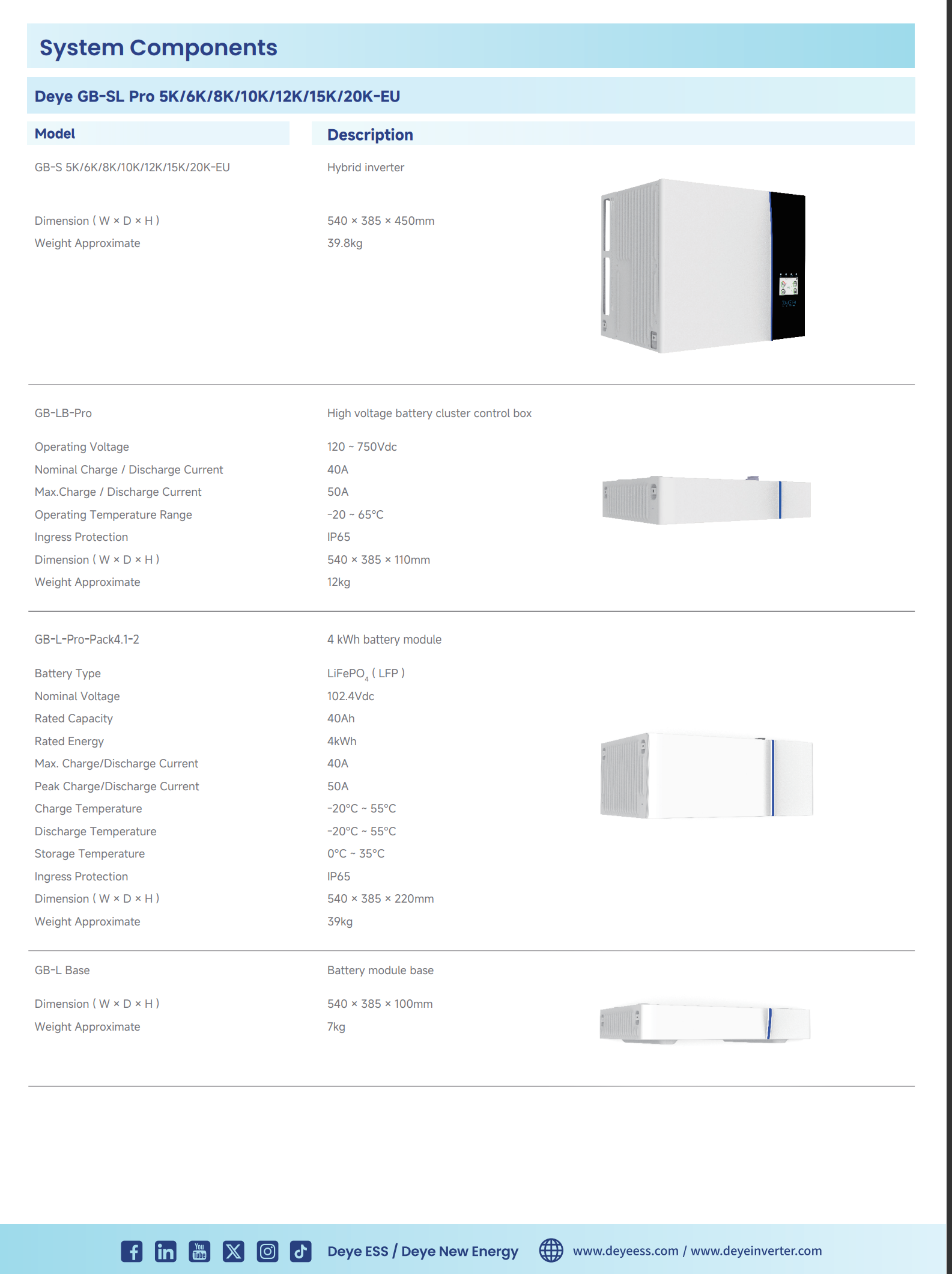

General Data
Operating Temperature: Range: -40 to +60℃, > 45℃ Derating
Inverter Size(W x H x D): 540x 385 x 450 mm
Inverter Weight: 39.8kg
