Description

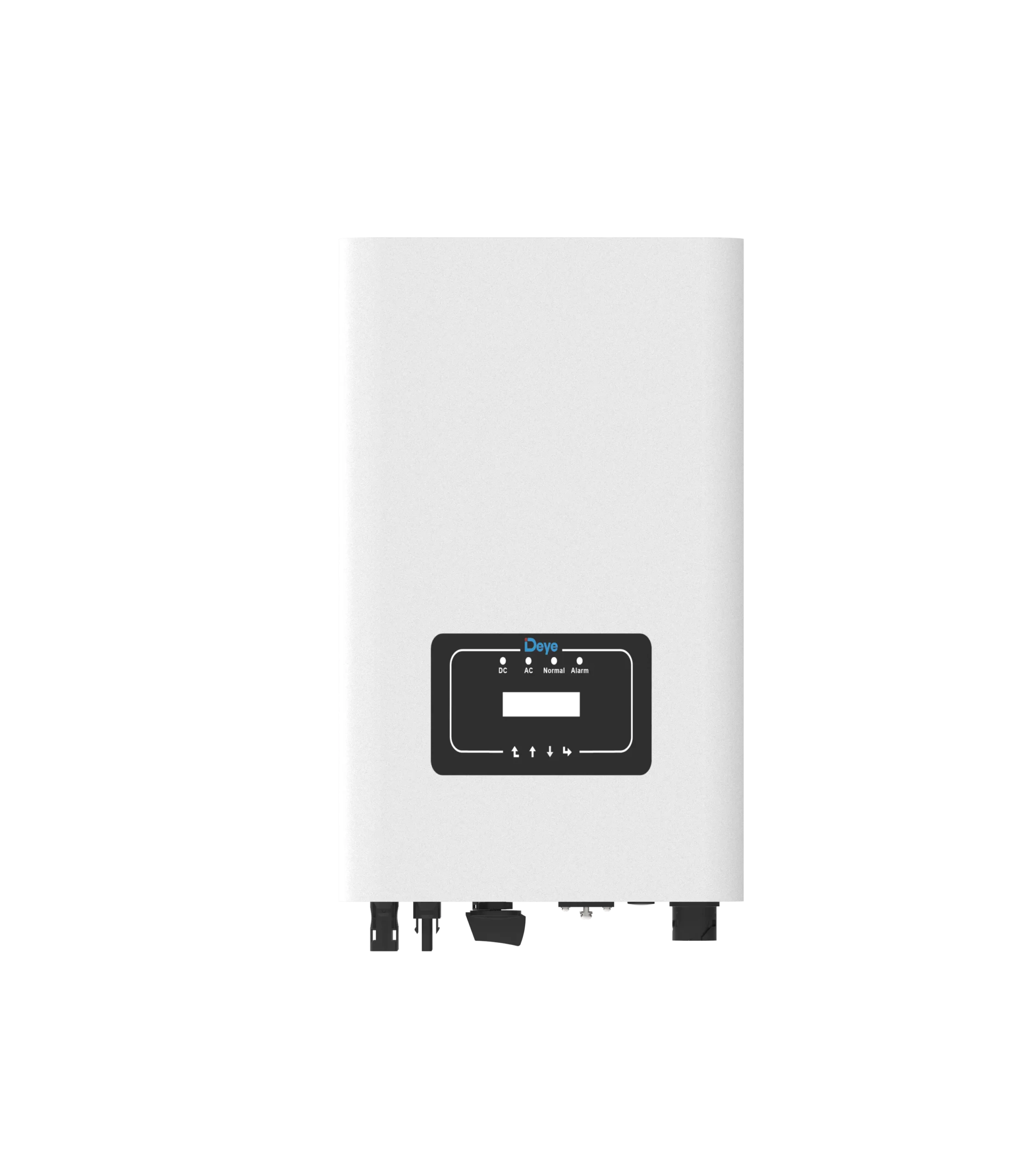

Model: SUN-12K-G05-AU

PV String Input Data
Max. PV Input Power (kW): 18
Max. PV Input Voltage (V): 1000
Start-up Voltage (V): 250
MPPT Voltage Range (V): 200-850
Rated PV Input Voltage (V): 600
Max. Operating PV Input Current (A): 13+13
Max. Input Short Circuit Current (A): 19.5+19.5
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/1+1

AC Output Side
Rated AC Output Active Power (kW): 12
Max. AC Output Apparent Power (kVA): 12
Rated AC Output Current (A): 17.4
Max. AC Output Current (A): 17.4
Rated Output Voltage/Range (V): 230V/400V  240V/415V 0.85Un-1.1Un

Interface
Communication Interface: RS485/RS232/WiFi/LAN
LCD/LED Display: LCD1602

General Data
Cabinet Size (WxHxD mm): 332x457x203 (Excluding Connectors and Brackets)
Weight (kg): 11
Warranty: 10 Years
