Description

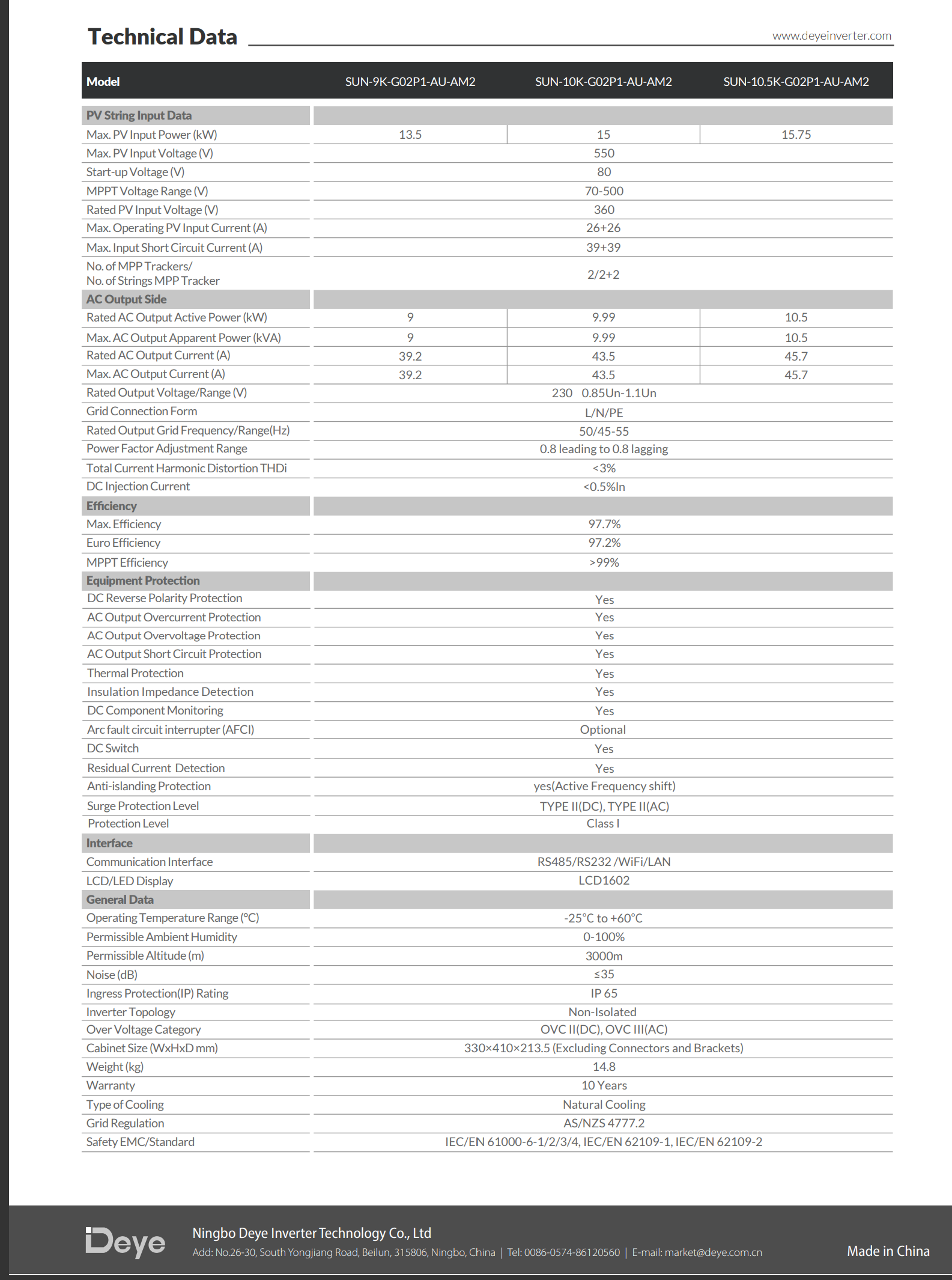

Technical Specifications:

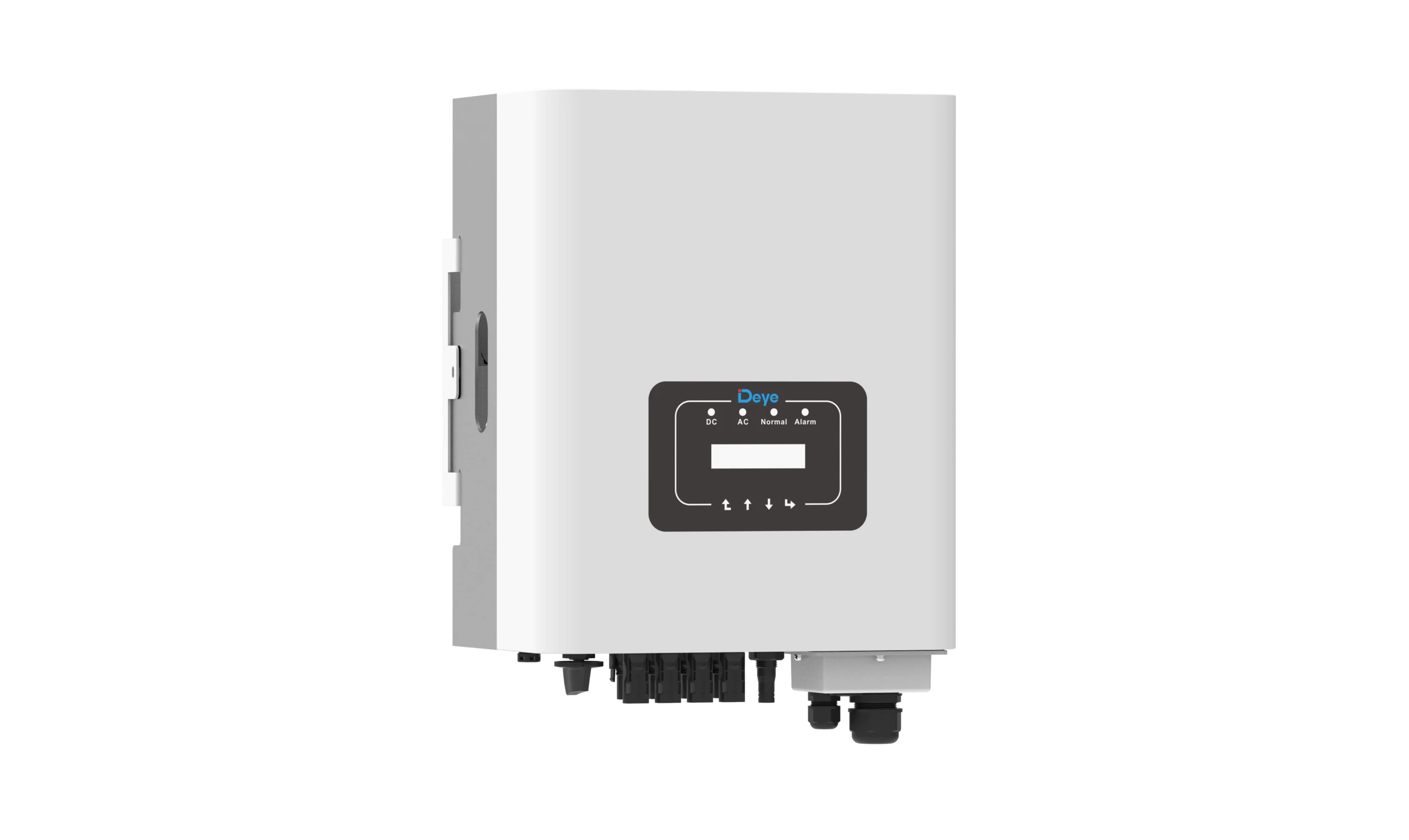

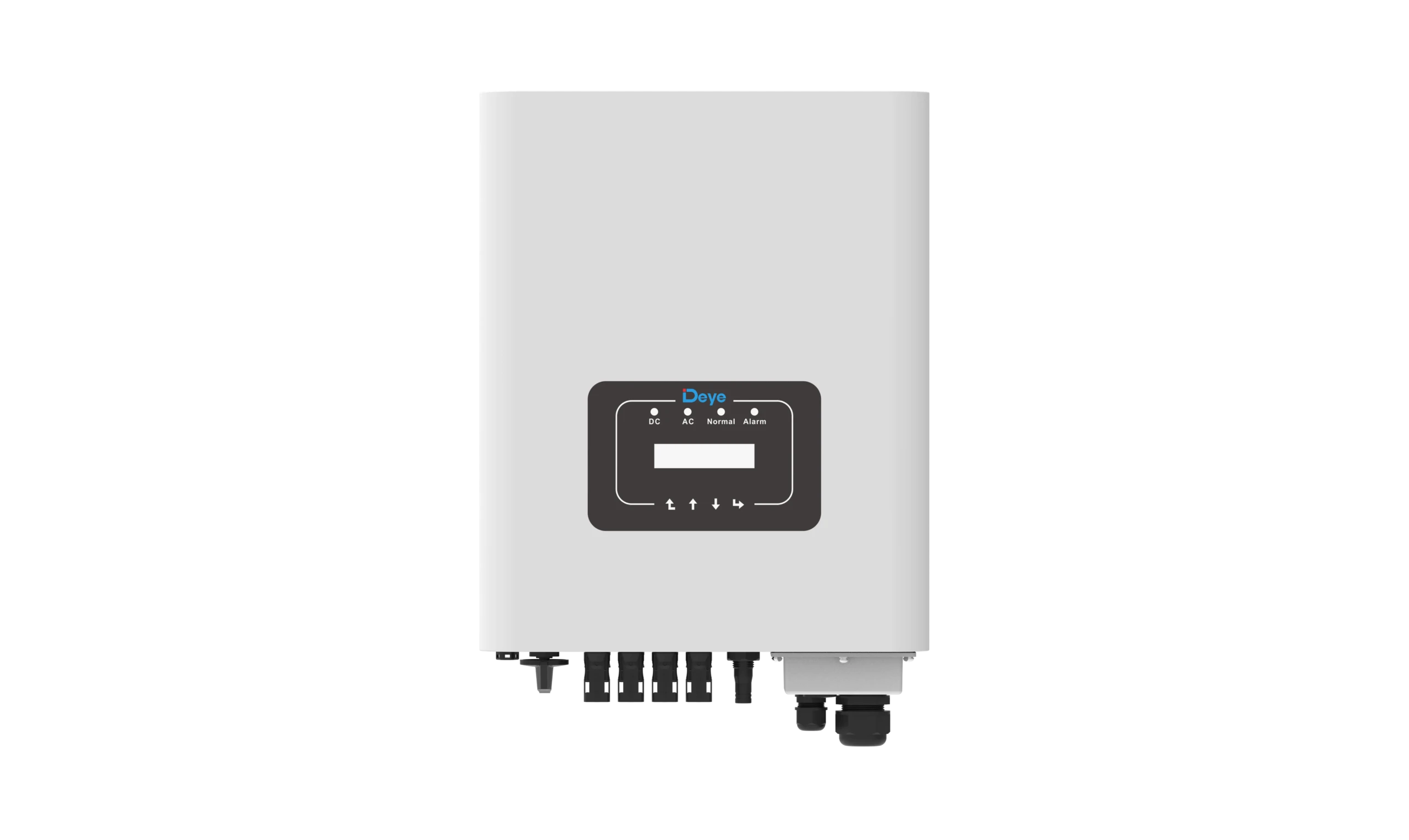

Model: SUN-10K-G02P1-AU-AM2

PV String Input Data
Max. PV Input Power (kW): 15
Max. PV Input Voltage (V): 550
Start-up Voltage (V): 80
MPPT Voltage Range (V): 70-500
Rated PV Input Voltage (V): 360
Max. Operating PV Input Current (A): 26+26
Max. Input Short Circuit Current (A): 39+39
No. of MPP Trackers/ No. of Strings MPP Tracker: 2/2+2

AC Output Side
Rated AC Output Active Power (kW): 9.99
Max. AC Output Apparent Power (kVA): 9.99
Rated AC Output Current (A): 43.5
Max. AC Output Current (A): 43.5
Rated Output Voltage/Range (V): 230 0.85Un-1.1Un

Interface
Communication Interface: RS485/RS232/WiFi/LAN
LCD/LED Display: LCD1602

General Data
Cabinet Size (WxHxD mm): 330x410x213.5 (Excluding Connectors and Brackets)
Weight (kg): 14.8
Warranty: 10 Years
